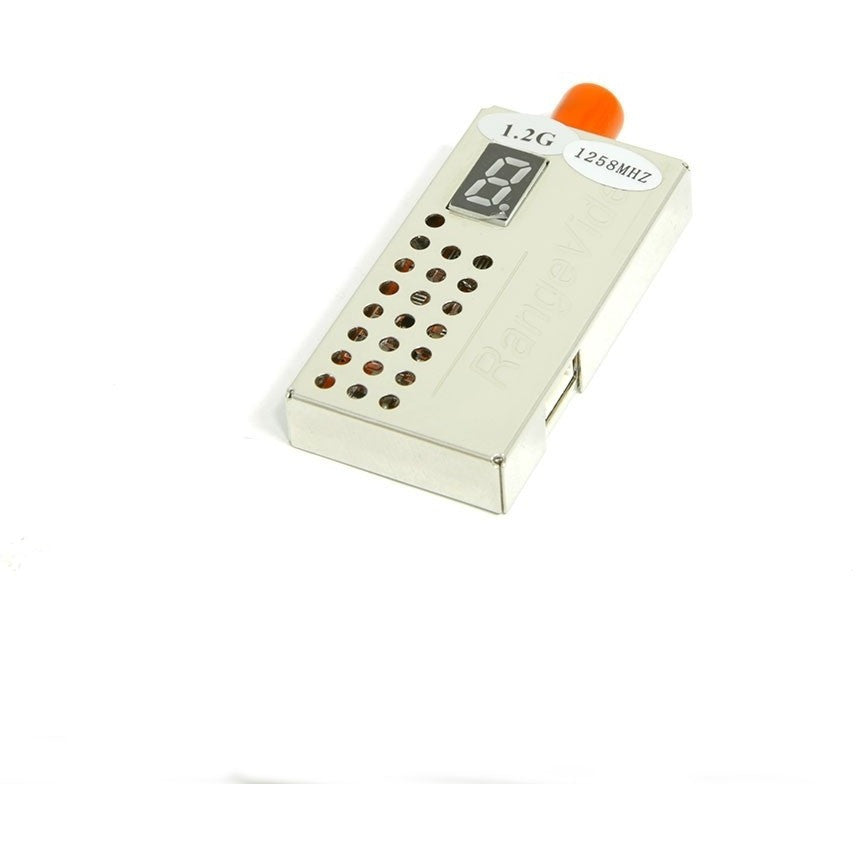

Our most popular long range video transmitter.
Collections: 1.2 GHz FPV Equipment, Front Page
The recommended power source is a 3s1p Li-Poly battery.
RF power output based on voltage input to transmitter;
Tested by T.Scherrer.
10V 26dBm11V 27dBm 500mW
12V 28dBm 600mW (nice power level)
13V 28.7dBm
14V 29.5dBm (gets darn hot !! so dont do it)
The transmitter heats up more at higher voltages. It is normal for the transmitter to heat up 60 degrees Celsius when being powered from a 12V source. For prolonged life it is recommended to use a heat sink or place the transmitter in an airflow. When bench testing the transmitter it's best to use a lower voltage.
We ship two different versions of this transmitter, depending on your shipping address.

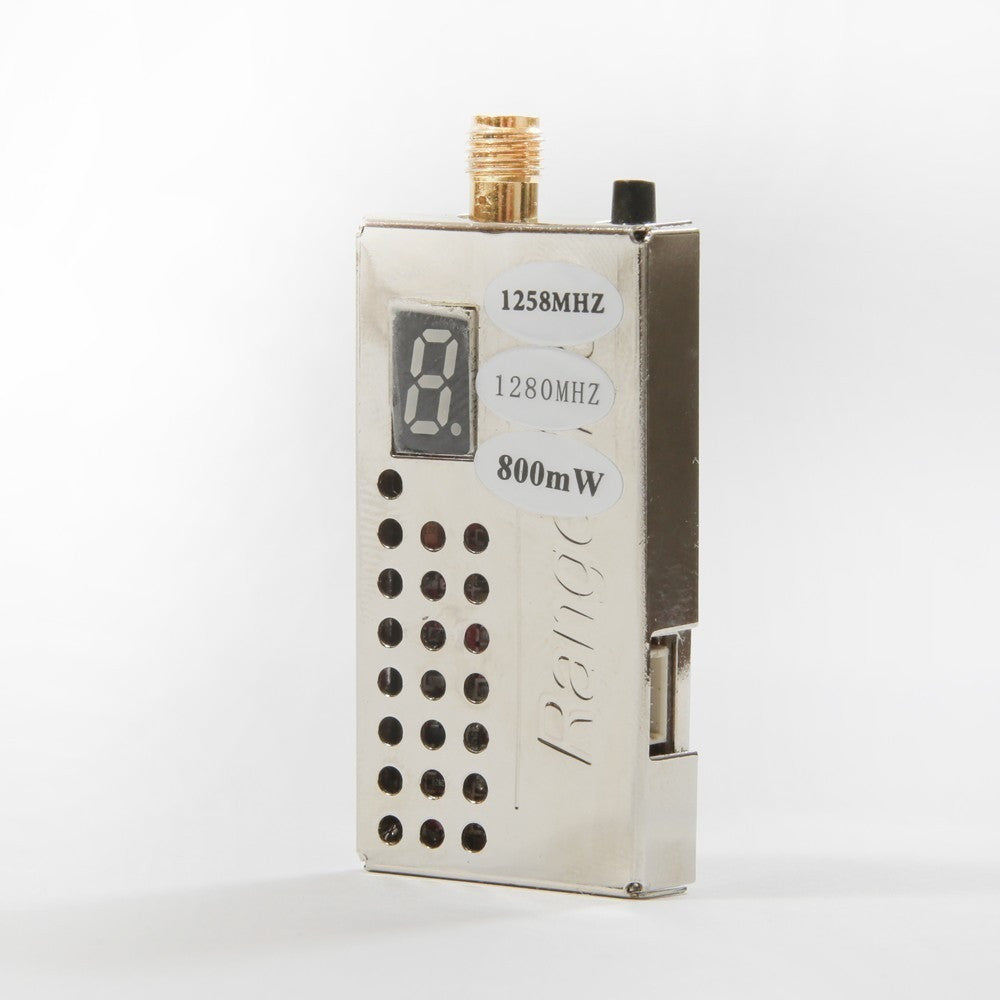

USA customers can only request a 1 channel version : 1258 MHz or 1280 MHz
International version will receive 9 channel selectable version:
International version 1.3GHz 800mW transmitter channels:

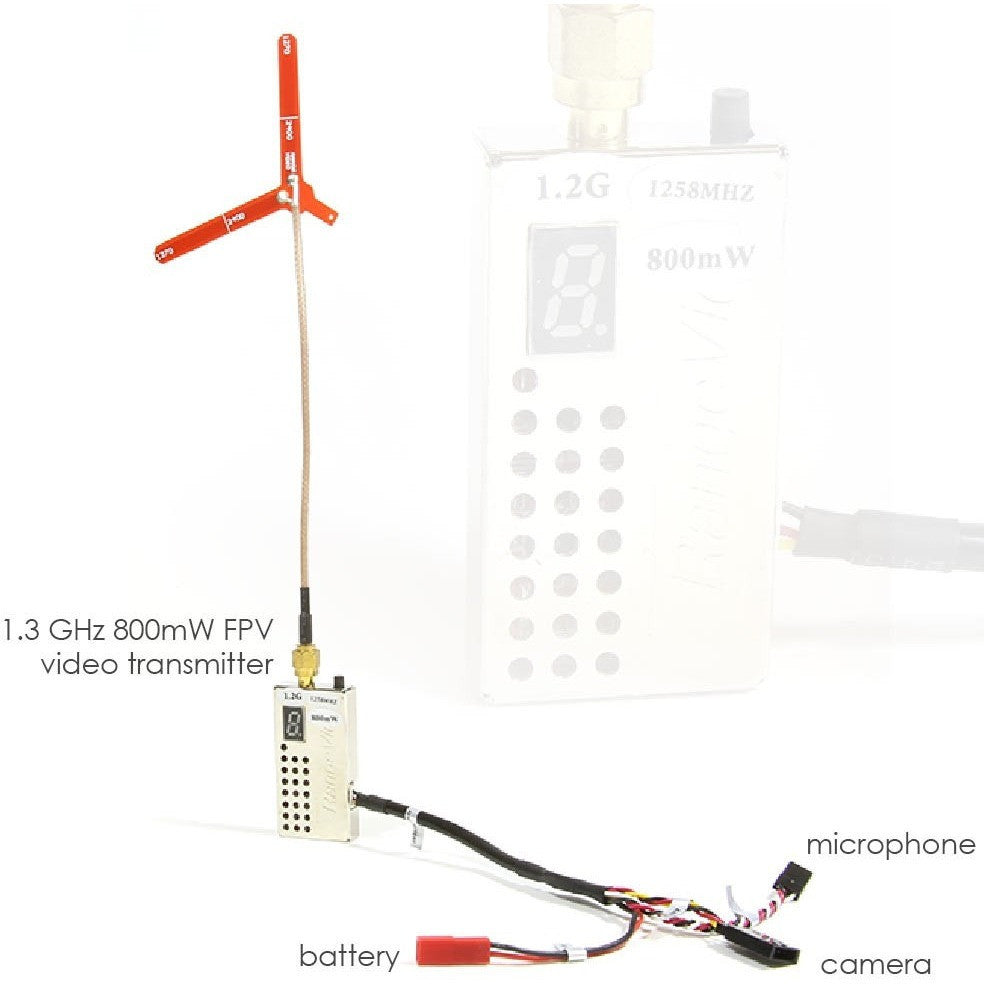

It is very easy to implement this transmitter into your design. The transmitter has four connections:
Red: Power
Black: GND
Yellow: Video in
White: Audio in
You can connect any composite video source to this transmitter. This includes but not limited to:
Digital camera video out
Video camera video out
Micro camera video out

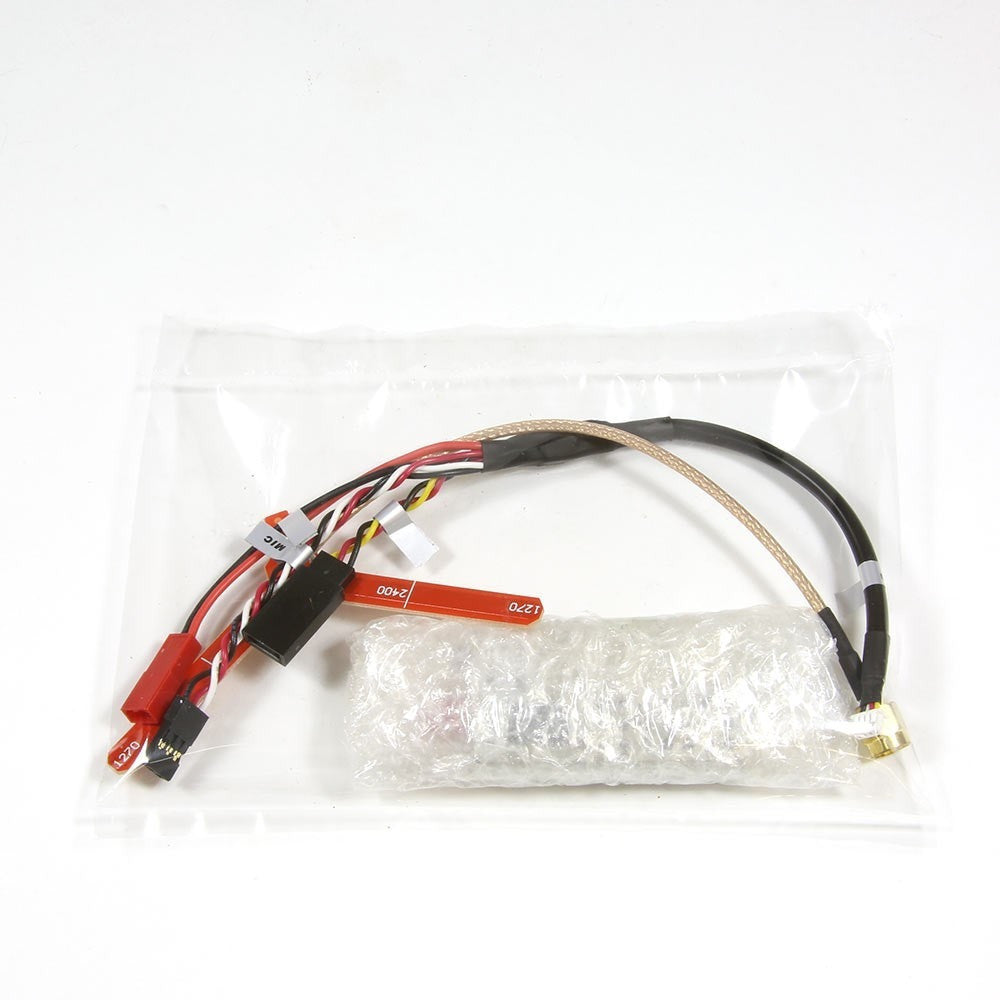

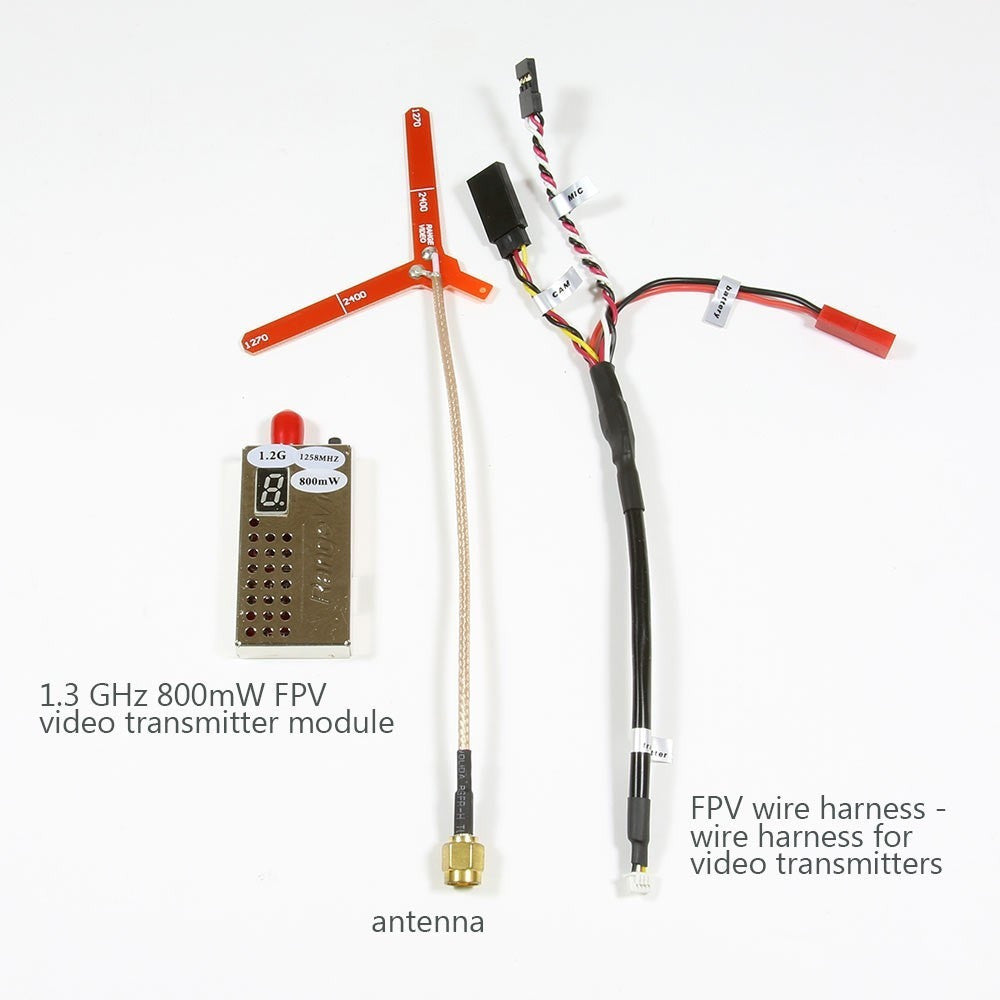

The included FPV wire harness makes it easy to connect the following devices:
Gopro camera- use with RangeVideo GoPro Connector to get composite video out.
KX6 micro camera - the video out cable is included with the camera and plugs right into the FPV wire harness
RunCam 2 / Foxeer HD cameras- the composite video output cable is included with the camera and plugs right into the FPV wire harness
